How to Install TDBU Cellular Shades: Step-by-Step Guide

Updated for 2026 · 10 min read

Quick Answer: Installing top down bottom up cellular shades is a straightforward DIY project that typically takes 15 to 20 minutes per window. Unlike standard window blinds with a single moving bottom rail, top down bottom up shades feature a three-rail system: a fixed top headrail, a floating middle rail that lowers to let in natural light, and a bottom rail that raises for privacy. The key to flawless installation is mounting your brackets 2 to 3 inches from each end while ensuring they never clamp directly over internal cord pulleys or tension springs.

Top down bottom up blinds (also widely searched as cellular blinds top down bottom up) are celebrated by architects and homeowners alike for providing the ultimate balance between daylighting and street-level privacy. However, because modern cordless top down bottom up shades rely on dual internal spring mechanisms, precise installation is essential to keep the middle floating rail perfectly level and operating smoothly.

This master guide covers the exact tools required, step-by-step instructions for both inside and outside mounts, and professional troubleshooting to fix crooked rails or sticking mechanisms.

Understanding the Three-Rail Anatomy of Top Down Bottom Up Shades

Before picking up your drill, take a moment to understand how your shade is engineered. A standard single-direction blind has only two rails, but all top down bottom up window shades have three distinct components:

• The Top Headrail: The stationary aluminum cassette at the very top that snaps permanently into your mounting brackets. It houses the internal cordless spring motors and cord spools.
• The Floating Middle Rail: The upper moving bar attached to the top of the honeycomb fabric. When you lower this rail, light pours into your room from the top while the lower fabric continues to block the view from the street.
• The Bottom Rail: The weighted lower bar that raises upward to open the window completely.

Golden Rule Before Unpacking: Keep your top down bottom up shade fully closed and tied with its factory shipping bands until the headrail is securely snapped into the window brackets. Expanding the shade prematurely can cross the internal lift cords or unseat the spring tension motors.

Tools & Hardware Checklist

Having the correct tools on hand ensures your brackets seat cleanly without stripping screws:

• Steel measuring tape (rigid steel only; avoid fabric measuring tapes)
• Carpenter’s bubble level (or digital torpedo level)
• Pencil for marking bracket screw slots
• Variable-speed power drill with 1/16” drill bit for wood pilot holes
• Phillips-head screwdriver bit (hand-tightening recommended for final turns)
• Heavy-duty drywall anchors (minimum 30 lb rating, required if mounting outside the frame into hollow drywall without wall studs)
• Sturdy step stool or ladder

Step 1: Determine Precise Bracket Placement

Bracket positioning is the single most critical step when installing top down bottom up cellular shades. Because these shades have complex internal lift mechanics, improperly placed brackets can pinch the internal cords or warp the aluminum cassette.

• End Bracket Spacing: Position the outer brackets 2 to 3 inches inward from each end of the headrail. This provides optimal structural support without crowding the end caps.
• Center Support Brackets: For shades wider than 48 inches that include a third or fourth center bracket, distribute them evenly across the remaining span.
• The Pulley Clearance Inspection (Mandatory): Look inside the open top channel of your headrail cassette. Identify the internal cord spools, spring clutches, and gear components. Ensure your bracket positions sit at least 1 inch away from any internal mechanical parts. Clamping a bracket directly over a cord spool will jam the cordless lift mechanism!

Step 2: Mark & Drill Mounting Holes

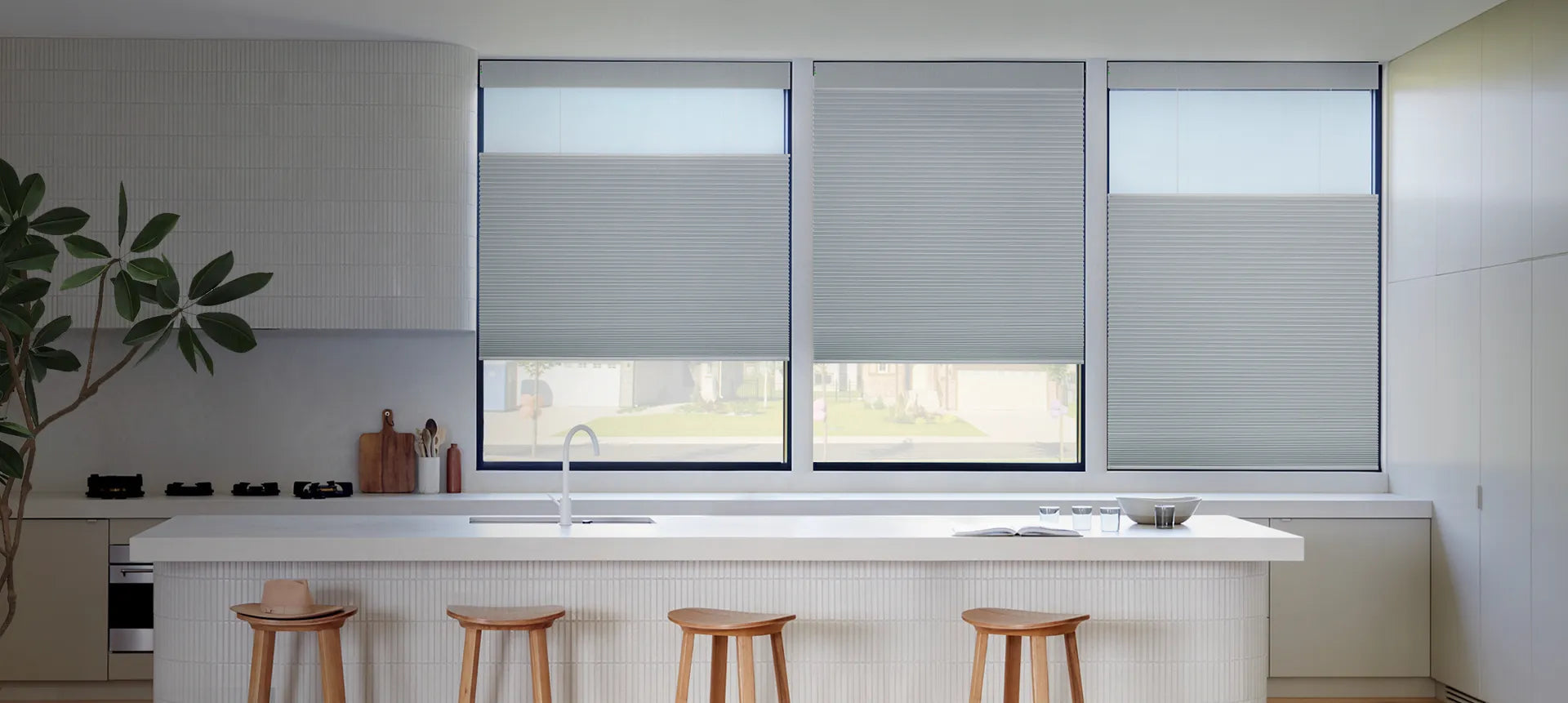

Inside Mount Installation (Clean Architectural Flush Fit)

An inside mount installs the headrail entirely within your window casing, showcasing your window trim.

1. Check Depth: Verify your window frame has at least 1.5 inches of flat depth for secure bracket attachment, and at least 2.5 inches for the cassette to sit completely flush with your drywall.
2. Hold the mounting bracket against the top interior jamb (the "ceiling" of the window frame), 2 to 3 inches from the corner jamb.
3. Use a pencil to mark the diagonal screw holes. Marking two screws per bracket ensures the bracket won't twist under daily pulling.
4. Use a level across the bracket faces to ensure they align on a shared horizontal plane.
5. Pre-drill pilot holes using your 1/16” drill bit to prevent solid wood casing from splitting.
6. Drive the mounting screws through the bracket holes until snug. Do not over-torque: overtightening can bow the metal bracket and prevent the headrail from snapping in.

Outside Mount Installation (Overcoming Shallow Frames & Maximum Privacy)

An outside mount fastens the brackets onto the wall, window molding, or ceiling above the opening.

1. Hold the closed shade horizontally against the wall centered over the window opening. Place a level across the headrail.
2. Lightly mark the outer top corners of the headrail on your wall with a pencil.
3. Measure 2 to 3 inches inward from those marks to establish your bracket locations.
4. If fastening directly into solid wood window trim or wall studs, drill 1/16” pilot holes and secure with wood screws.
5. If mounting into hollow drywall, pre-drill holes for heavy-duty toggle bolts or zinc hollow-wall anchors rated for at least 30 lbs, then mount your brackets securely.

Step 3: Mount and Lock the Headrail

Modern top down bottom up shades use spring-loaded, snap-in mounting brackets engineered for a secure, tool-free lock:

1. Position the front lip of the headrail cassette into the front catches of all mounting brackets.
2. Pivot the bottom of the cassette backward and upward toward the window frame.
3. Press firmly upward and backward on the headrail until you hear and feel a distinct, audible "CLICK" as the spring-loaded rear tabs lock into place.
4. Gently pull forward and downward on the headrail to verify that every single bracket is fully engaged.

Step 4: Operating Cordless Top Down Bottom Up Shades

Now that your headrail is locked solid, carefully cut the packaging bands and remove any protective foam blocks. Modern cordless top down bottom up blinds feature two clear ergonomic handles clipped onto the rails:

• Operating the Middle Floating Rail: Grasp the center handle on the middle rail. Gently pull downward to lower the top of the fabric, allowing daylight into your living room while preserving lower window privacy. To close, push upward until the middle rail seats flush against the top headrail.
• Operating the Bottom Rail: Grasp the handle on the bottom rail. Pull down to lower the shade to the sill, or push upward to stack the fabric neatly at the top.
• Pro Tip for Cordless Longevity: Always operate cordless shades from the center of the rail using smooth, steady pressure. Grabbing the rail from the far left or right causes uneven spring tension and can skew the floating rail over time.

Professional Troubleshooting for Common TDBU Issues

Problem 1: The Middle Floating Rail Sits Crooked or Tilted

If the middle floating bar slants to one side when lowered, check the headrail first with a level. If the headrail is level, the internal cordless tension cords simply need a quick recalibration. Grasp the middle rail with both hands and pull it all the way down to the bottom sill. Then, slowly and evenly push both the middle and bottom rails all the way up to the top headrail until tightly compressed. This resets the internal cord spools and equalizes dual-spring tension across both sides.

Problem 2: The Headrail Won't Snap Into the Mounting Brackets

This is almost always caused by overtightened mounting screws. If the mounting screws were driven with too much torque, the back plate of the steel bracket bends slightly inward, preventing the rear tab from flexing open. Back the mounting screws out half a turn until the bracket sits flat against the jamb, then try snapping the cassette in again.

Problem 3: The Shade Won't Stay Up or Drifts Downward

On new cordless cellular shades, internal springs sometimes require an initial "break-in" cycle. Fully cycle the shade up and down 3 to 5 times to seat the internal friction clutches. If the shade continues to slip, review our dedicated guide on How to Fix Stuck Cordless Blinds.

Frequently Asked Questions About Top Down Bottom Up Cellular Shades

How do cordless top down bottom up blinds work without cords?

Cordless top down bottom up blinds use two independent spring-loaded friction motors concealed inside the top headrail. One motor controls the internal cords routed to the middle floating rail, while the second motor controls the cords attached to the bottom rail. The balanced tension holds each rail firmly in any position along the window height without hanging pull cords, making them 100% child- and pet-safe.

Can top down bottom up cellular shades be installed on French doors?

Yes, but they require hold-down brackets. When installing top down bottom up shades on French doors or patio doors that swing open, install small plastic hold-down pins at the bottom corners of the door frame. This locks the bottom rail in place so the shade doesn't bounce against the glass when the door opens, while still allowing full operation of the top floating rail.

What is the minimum window depth required for inside mount top down bottom up shades?

Most standard top down bottom up cellular shades require a minimum of 1.5 inches of flat depth inside the window frame for the mounting brackets to attach securely. For the top cassette to sit completely flush with the surrounding drywall, a depth of 2.5 to 3 inches is recommended.

Why are my top down bottom up blinds uneven when lowered?

An uneven floating rail is usually caused by pulling the handle off-center, causing one cord spool to take up more tension than the other. You can easily re-level the shade by lowering both rails fully to the bottom sill and then lifting them straight up to the headrail with two hands. This resets the internal cord tension evenly across both sides.
