How to Measure Zebra Shades for Any Window or Sliding Door

Updated for 2026 · 8 min read

Quick Answer: To measure zebra shades accurately, use a rigid steel tape measure to record three widths (top, middle, bottom) and three heights (left, center, right) to the nearest 1/8 inch. For an inside mount, require at least 2 inches of flat casing depth (3 inches for a flush cassette) and submit the exact narrowest width—the factory automatically applies a 1/4" to 3/8" deduction. For outside mount or sliding patio doors, add 4 to 6 inches of width and height overlap to prevent side light gaps, manufactured with zero factory deductions.

Zebra shades—also widely known as dual sheer shades, vision blinds, or banded shades—offer the clean architectural look of roller blinds paired with the precision light-filtering control of horizontal blinds. However, because zebra shades operate on a continuous loop of alternating sheer voiles and opaque fabric vanes, exact measuring is critical. An improper measurement will either cause side light halos or cause the dual-layer fabric to scrape against the window jamb, leading to edge fraying.

Zebra Shade Measuring & Mounting Decision Matrix

Before pulling out your tape measure, compare mounting styles against your window depth, casing architecture, and light-control expectations. For full storewide measuring specifications across all blind styles, consult our Measuring & Installation Guide.

Choosing Your Mounting Method: Inside vs. Outside Mount

For an in-depth breakdown of architectural tradeoffs between framing styles, review our guide on Inside Mount vs Outside Mount Blinds. Here is how that decision applies to zebra shade mechanics:

Inside Mount: Built-In Architectural Elegance

Inside mount houses the zebra cassette within your window frame opening, highlighting decorative millwork and keeping walls unobstructed. However, this configuration introduces specific mechanical requirements:

• Depth Clearance: Zebra headrail cassettes are deeper than mini blinds or cellular shades due to the internal dual-roller drum. You require a minimum flat mounting depth of 2.0 inches to anchor mounting clips into the top jamb. For the modern aluminum cassette to sit flush with your drywall surface without protruding into the room, you need 3.0 inches of depth.
• The Inherent Edge Light Gap (Physics of Roller Hardware): On inside-mounted roller or zebra shades, the fabric cannot span the entire headrail width. The top cassette must house internal end plugs, idle pins, and the cordless spring mechanism. Consequently, the fabric is deliberately 1/2" to 3/4" narrower than the cassette. In bedrooms requiring maximum darkness, consider pairing with an outside mount or ordering L-shaped side channels.

Outside Mount: Maximum Light Blockage & Shallow Casings

An outside mount fastens directly to your drywall, wall studs, or casing trim above the window. This is the optimal configuration when:

• Your window jamb has less than 2 inches of depth.
• Window cranks, tilt latches, or security sensors obstruct the interior frame.
• The window opening is out-of-square (differing by more than 3/8 inch diagonally).
• You want to minimize edge light gaps by extending the opaque vanes over the wall frame.

How to Measure for an Inside Mount Zebra Shade (Step-by-Step)

Step 1: Measure the Inside Width (3 Locations)

Measure the inside width of your window casing across three points: the top, the middle, and the bottom.

• Use a rigid steel tape measure and hold it level. Never round up to full inches. Record all measurements down to the nearest 1/8 inch.
• Select the NARROWEST measurement as your ordering width. Windows often settle unevenly; using the widest measurement guarantees the top aluminum cassette will jam during installation.

Step 2: Measure the Inside Height (3 Locations)

Measure the inside height from the top jamb down to the window sill across three points: left, center, and right.

• Record all three measurements down to the nearest 1/8 inch.
• Select the LONGEST measurement as your ordering height. Zebra shades feature internal limit stops, and having full fabric drop ensures the bottom rail seals flush with the sill to align bottom stripes properly.

Step 3: Measure the Window Frame Depth

Measure from the front face of your window casing back to the glass pane, checking for any hardware obstructions (crank handles, lock latches, sensors). You need 2 inches of flat surface for mounting brackets, and 3 inches for a fully flush finish.

How to Measure for an Outside Mount Zebra Shade

The Outside Mount Golden Rule: What you submit is the exact finished shade dimension manufactured. The factory applies ZERO deductions to outside mount orders.

Step 1: Measure Finished Width & Add Light Overlap

Measure the outer width of the window frame or opening.

• Add 4 to 6 inches to your total width (2 to 3 inches of overlap on each side). This extra fabric overlap covers the outer casing, preventing side light halos from leaking into the room when the opaque vanes are closed.
• If mounting to flat drywall without trim, measure the drywall opening and add 3 inches to both the left and right sides.

Step 2: Measure Finished Height & Add Mounting Overlap

Measure the total height of the window opening from top trim to bottom sill.

• Add 4 to 6 inches to your total height. You must mount the brackets at least 2 to 3 inches above the window opening to secure screws into wall studs or solid anchors, while allowing the shade to drop 2 to 3 inches below the sill for complete coverage.

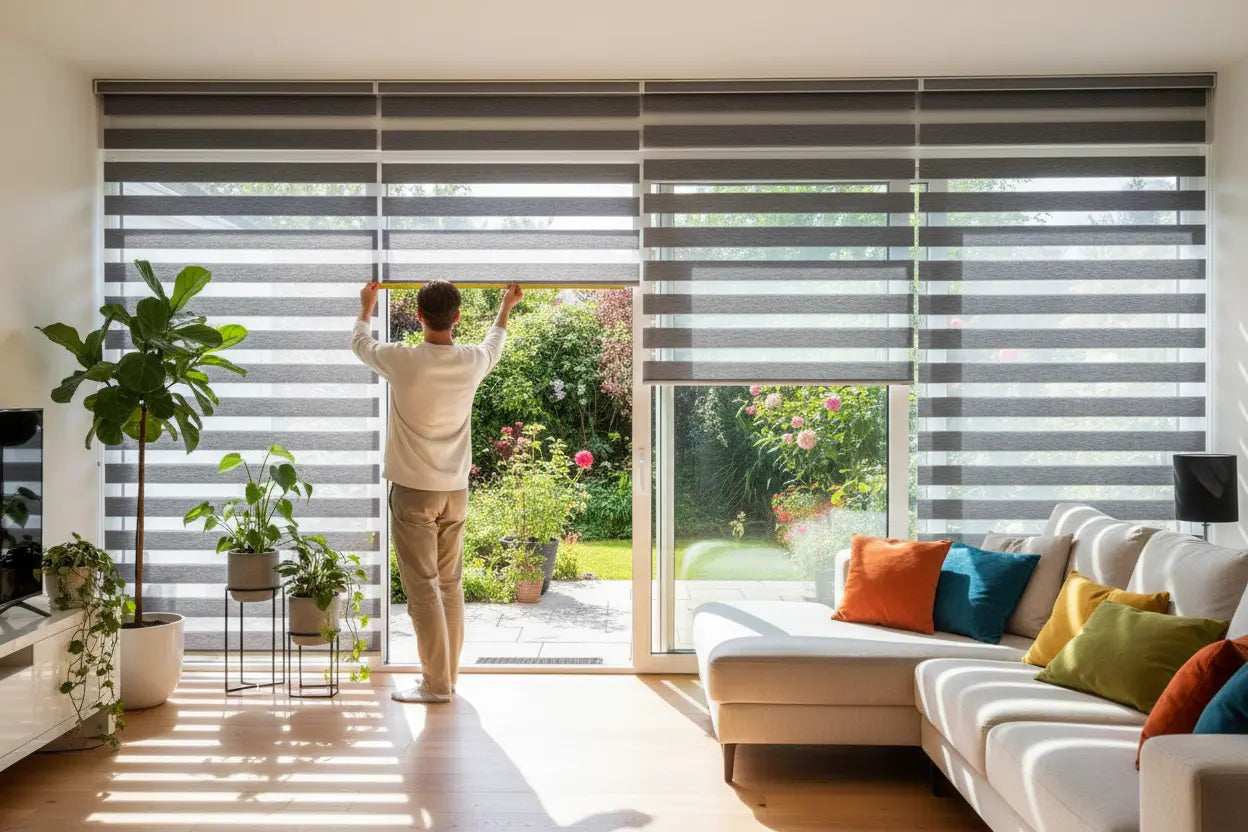

How to Measure Zebra Shades for Sliding Glass Patio Doors

Zebra shades offer a sleek, contemporary upgrade over vertical louvers for sliding glass patio doors. For large glass spans, explore our dedicated Sliding Glass Door Blinds Guide.

Step 1: One Large Shade vs. Two Independent Panels (Split Mount)

• Two Independent Panels (Recommended): Splitting a patio door into two individual shades mounted side by side under matching cassettes is the most practical setup. You can keep the panel covering the fixed glass lowered for daytime privacy while raising the active slider shade for patio foot traffic.
• One Continuous Shade: While achievable for moderate spans, operating a single 90+ inch manual shade places significant tension on internal springs. For spans exceeding 80 inches, motorized cordless operation is strongly advised.

Step 2: Measure Width for Sliding Patio Doors

Measure the outer width of the door frame and add 4 to 6 inches for overall side overlap. If dividing the opening into two independent shades, take the final finished width and divide by two. (Note: There will be an inherent 3/4-inch light gap in the center where the two fabric panels meet).

Step 3: Measure Height & Allow Floor Clearance

Measure from your planned bracket mounting height (at least 3 to 4 inches above the door molding to clear the frame) straight down to the floor. Subtract 1/2 inch from your total ordering height so the bottom weighted aluminum bar hovers cleanly above the floor without scraping across door thresholds or gathering dust.

Step 4: Check Door Handle Clearance & Extension Brackets

Sliding patio door handles typically protrude 1.5 to 2.5 inches forward from the frame. If an outside-mounted shade rolls down directly against the handle, the fabric will catch and skew. Request extension brackets or spacer blocks to project the cassette forward past the door handle.

Featured Custom Zebra Shades

Once your measurements are recorded, choose the opacity that matches your light control and room requirements:

Frequently Asked Questions About Measuring Zebra Shades

Can zebra blinds be cut down to size after purchase?

No, custom zebra shades cannot be trimmed or cut down after manufacturing. Because zebra blinds feature a continuous tensioned loop of alternating sheer and solid fabrics wrapped around an internal spring roller, trimming the fabric ruins stripe alignment, frays fabric edges, and permanently damages the cordless mechanism. Always measure accurately upfront.

How much deduction does the factory make for inside mount zebra blinds?

For an inside mount, our factory automatically applies a standard deduction of approximately 1/4" to 3/8" (0.5 to 0.9 cm) from your submitted window width. This allows the top cassette to slide smoothly into the casing and prevents the fabric from catching on window jambs. Always submit exact casing dimensions without deducting anything yourself.

What should I do if I already deducted size before placing my order?

If you already subtracted tolerance from your measurements, you must explicitly note this in the Order Notes field during checkout (e.g., "I already deducted width; build to exact specified dimensions with zero deduction"). If you do not notify us, the factory will apply an additional deduction, producing unwanted oversized light gaps.

How do you measure dual sheer shades (banded shades) for an inside mount?

First, verify frame depth—you need at least 2 inches for mounting brackets and 3 inches for a flush cassette finish. Measure the inside width across the top, middle, and bottom to the nearest 1/8 inch, submitting the narrowest width. Then measure the height at the left, center, and right, submitting the longest height.

How do you fix or eliminate the light gap on inside mount zebra shades?

Because the fabric must be narrower than the top headrail mechanism, inside mount zebra shades naturally have a 1/2-inch to 3/4-inch light gap on each side. If you require room darkening, you can eliminate side light leaks by installing stick-on side channel strips (light blockers) along the inner casing, or by choosing an outside mount with 4 to 6 inches of overlap.
